Adding a 240V Circuit for a Car Charger: A Complete Guide
Electric vehicles (EVs) are becoming popular around the world. Many people now want to charge their cars at home. Using a standard 120V outlet is possible, but it is slow. A 240V circuit can charge your car much faster. If you are thinking about installing a 240V circuit for a car charger, this guide will walk you through each step. Even if you are not an electrician, you will understand what is involved, what to consider, and how to avoid common mistakes. Safety is the top priority, and you will learn why some steps should be done by professionals.
Why 240v Charging Is Important
A standard wall outlet in most homes is 120V. Charging your electric car with this can take more than 24 hours for a full battery. With a 240V circuit, the charging time drops to 6–8 hours for most cars. This means you can charge overnight and have a full battery every morning.
Some electric cars, like the Tesla Model 3 or the Nissan Leaf, can even charge up to 30 miles of range per hour with a 240V charger. If you drive daily or have more than one EV, 240V charging is almost a must.
Key Things To Consider Before Installation
Before you start, there are a few important things to think about. These will affect cost, safety, and how well your charger works.
1. Your Home’s Electrical Capacity
Your home’s main electrical panel must have enough space and power for a 240V circuit. Most homes have a 100A, 150A, or 200A main panel. If your panel is already full, you may need an upgrade, which costs more.
2. Circuit Breaker Size
The size of the circuit breaker depends on your car charger’s needs. Most Level 2 chargers require a 40A or 50A breaker. The breaker must match the charger to prevent overheating and fire risk.
3. Wire Gauge
The wire size (gauge) is important for safety. For example, a 40A circuit usually needs at least 8 AWG wire. Longer distances may need thicker wire to reduce voltage drop.
4. Charger Location
Where you put your charger matters. The closer it is to your main panel, the easier and cheaper it is to install. If your garage is far from the panel, installation will be more complex.
5. Permits And Codes
Most cities require a permit for new electrical circuits. Local electrical codes may have special rules, so always check with your city or a licensed electrician.
Tools And Materials You Will Need
Having the right tools and materials will make the job smoother and safer. Some items are for professionals, but knowing what is needed helps you plan.
- 240V EV charger (Level 2, such as Tesla Wall Connector, JuiceBox, or ChargePoint)
- Circuit breaker (usually 40A or 50A, consult your charger specs)
- Electrical wire (usually 8 AWG or thicker, copper preferred)
- Electrical conduit (PVC or metal, depending on code)
- Junction boxes
- Wire connectors and clamps
- Drill and bits
- Voltage tester or multimeter
- Screwdrivers, pliers, wire strippers
- Mounting hardware (screws, anchors)
- Safety gear (gloves, goggles)
If you are not familiar with these tools, hiring a professional is strongly advised.
Step-by-step Process To Add A 240v Circuit
Let’s break down the installation into clear steps. This overview is for understanding the process. Only perform electrical work if you are qualified and have permission.
1. Plan The Route And Location
Decide where you want your car charger. Measure the distance from your main panel to the charger location. Shorter runs are cheaper and easier.
2. Obtain Permits
Go to your local building department and apply for an electrical permit. They may ask for a wiring diagram and details about your charger.
3. Turn Off Main Power
Safety first. Turn off the main breaker before you start any work in the panel. Use a voltage tester to confirm there is no live power.
4. Install The New Circuit Breaker
Open your main panel. Install the new 2-pole breaker in a free slot. Make sure the breaker matches your charger’s requirements.
5. Run The Electrical Wire
Route the electrical wire from the panel to the charger location. Use conduit for protection, especially if running wire outside or through walls.
6. Connect The Wires
At the panel, connect the black and red wires to the breaker, and the ground wire to the ground bar. At the charger end, connect as shown in the charger manual.
7. Mount The Charger
Secure the charger on the wall using the manufacturer’s instructions. Make sure the installation is sturdy and the charger is at a comfortable height.
8. Inspection
Call your local inspector to check the work. Do not turn on the power until the inspection is complete and approved.
9. Power On And Test
After approval, turn on the breaker. Plug in your car and check that the charger works and no breakers trip.
Practical Example: Installing A 240v Circuit For A Tesla Wall Connector
Let’s look at a real example. Suppose you want to install a Tesla Wall Connector. The Gen 3 Wall Connector needs a 60A circuit for maximum speed, but many homes use a 50A or 40A breaker.
Here’s a comparison of charging speeds for different breakers:
| Breaker Size | Max Charging Speed (kW) | Miles Added per Hour |
|---|---|---|
| 20A | 4.8 | ~20 |
| 40A | 9.6 | ~35 |
| 50A | 11.5 | ~44 |
| 60A | 14.4 | ~52 |
You can see that a larger breaker gives faster charging, but your car and house wiring must support it.
Cost Breakdown
Adding a 240V circuit for a car charger is an investment. Costs can vary a lot depending on your home and needs.
| Item | Estimated Cost (USD) |
|---|---|
| Permit and Inspection | $50–$200 |
| Wire and Conduit (50 ft.) | $100–$250 |
| Circuit Breaker | $30–$70 |
| EV Charger (Level 2) | $400–$800 |
| Electrician Labor | $500–$1,200 |
| Main Panel Upgrade (if needed) | $1,500–$3,000 |
If your panel has space and power, most installations cost between $700 and $2,000. If you need a panel upgrade, the price goes much higher.

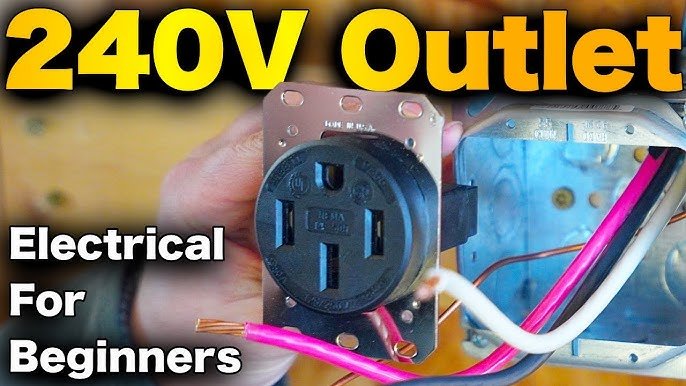

Credit: www.youtube.com
Safety And Legal Considerations
Electricity can be very dangerous. Even if you are experienced with home repairs, adding a 240V circuit is different from changing a light switch. Here are key safety points:
- Always turn off the main power before working in the panel.
- Use a voltage tester to be 100% sure the wires are not live.
- Follow local electrical codes—they exist for safety.
- Do not guess wire sizes or breaker ratings. Mistakes can cause fires.
- Most states require a licensed electrician for this work. DIY is illegal in some areas.
Insurance companies may not pay for damages if the work was not done by a pro and inspected.
Common Mistakes To Avoid
Many beginners make the same errors. Here are some to watch out for:
- Using the wrong wire size: Too thin wires heat up and can cause fires.
- Skipping the permit: This can lead to fines or having to redo the work.
- Not checking the main panel’s capacity: Overloading your panel is dangerous and can damage your home.
- Placing the charger too far from the panel: Longer wire runs cost more and can slow charging due to voltage drop.
- Not using GFCI protection (if required): Some codes require this for added safety, especially in garages.
- Not grounding properly: Bad grounding can cause shocks or charger failure.

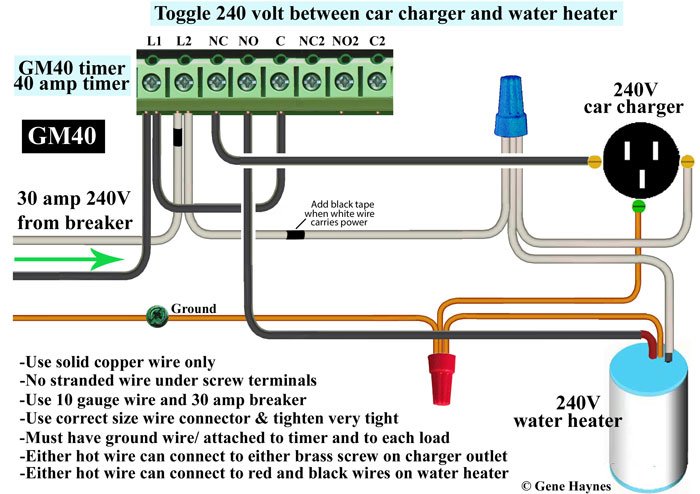

Credit: waterheatertimer.org
Tips For A Smooth Installation
- Always check your car’s manual for charging specs.
- Buy a charger from a known brand—safety and support are better.
- If you have solar panels, talk to your electrician about connecting the charger to your solar system.
- Keep all permits and inspection papers. You may need them if you sell your house.
- Ask your utility company if they offer rebates for EV charger installations.
Professional Vs. Diy Installation
You might wonder if you can save money by doing the work yourself. Here is a quick comparison:
| Aspect | Professional Installation | DIY Installation |
|---|---|---|
| Safety | Very high | Risk of mistakes |
| Legality | Meets code, insured | May not meet code |
| Cost | Higher upfront | Lower, but risky |
| Peace of mind | High | Depends on skills |
If you are unsure, hiring a pro is the smart choice. You get a safe, legal, and inspected system.
Future-proofing Your Installation
EV batteries are getting bigger, and fast charging is improving. Installing a slightly bigger wire or breaker now can save money later. For example, running a 50A circuit (even if your current charger only needs 32A) lets you upgrade to a faster charger in the future without redoing the wiring.
You might also want to install a second 240V outlet or charger if you plan to get another EV.
Environmental And Financial Benefits
Charging your car at home with a 240V circuit is not just convenient—it is also cheaper. The cost per mile is usually much lower than gas. In some states, you can charge overnight at lower rates. In addition, you help reduce pollution and dependence on oil.
Some utility companies offer rebates or tax credits for adding a home EV charger. Check your local programs or read more from sources like the U.S. Department of Energy.
Credit: www.youtube.com
Frequently Asked Questions
Can I Install A 240v Car Charger Myself?
If you have experience with electrical work and your area allows it, you can. However, most places require a licensed electrician for safety and code reasons. Mistakes can be dangerous.
How Long Does It Take To Install A 240v Circuit?
A simple installation takes 2–4 hours. If your panel is far from your garage or you need upgrades, it can take a whole day or more.
What Size Breaker Do I Need For My Car Charger?
Most Level 2 chargers use a 40A or 50A breaker. Always check your car and charger manual to find the correct size.
Do I Need A Permit To Add A 240v Outlet?
Yes, almost every city requires a permit and inspection for new electrical circuits. This ensures safety and protects your home insurance.
Will A 240v Charger Work With Solar Panels?
Yes, you can connect a 240V charger to a solar system. Talk to your electrician and solar installer to make sure your setup can handle the extra load.
Switching to a 240V home charger makes living with an electric car easier, faster, and more cost-effective. With good planning and the right help, you can enjoy reliable charging for years to come.
