Installing a dash cam in your car is one of the smartest moves for safer driving and peace of mind. A hardwired dash cam setup goes beyond simple plug-and-play installation. It keeps your camera running even when the engine is off, protects your car with parking mode, and hides messy wires for a cleaner look.
But many drivers feel nervous about working with car electronics or are unsure where to start. This guide will help you through every step—clearly, safely, and with practical tips to avoid common mistakes.
Why Hardwire Your Dash Cam?
Plugging your dash cam into the cigarette lighter port works, but it has limits. The camera only runs when the ignition is on, and cables often hang awkwardly, getting in the way or looking untidy. When you hardwire your dash cam, you connect it directly to the car’s fuse box. This gives several benefits:
- Continuous power for features like parking surveillance.
- Cleaner installation with hidden wires.
- Frees up your 12V socket for other devices.
If you want your dash cam to protect your car 24/7, hardwiring is the way to go.
What You Need Before Starting
Don’t start until you have all the right tools and parts. Missing something can lead to frustration or mistakes.
Essential items:
- Dash cam (compatible with hardwiring, check your model)

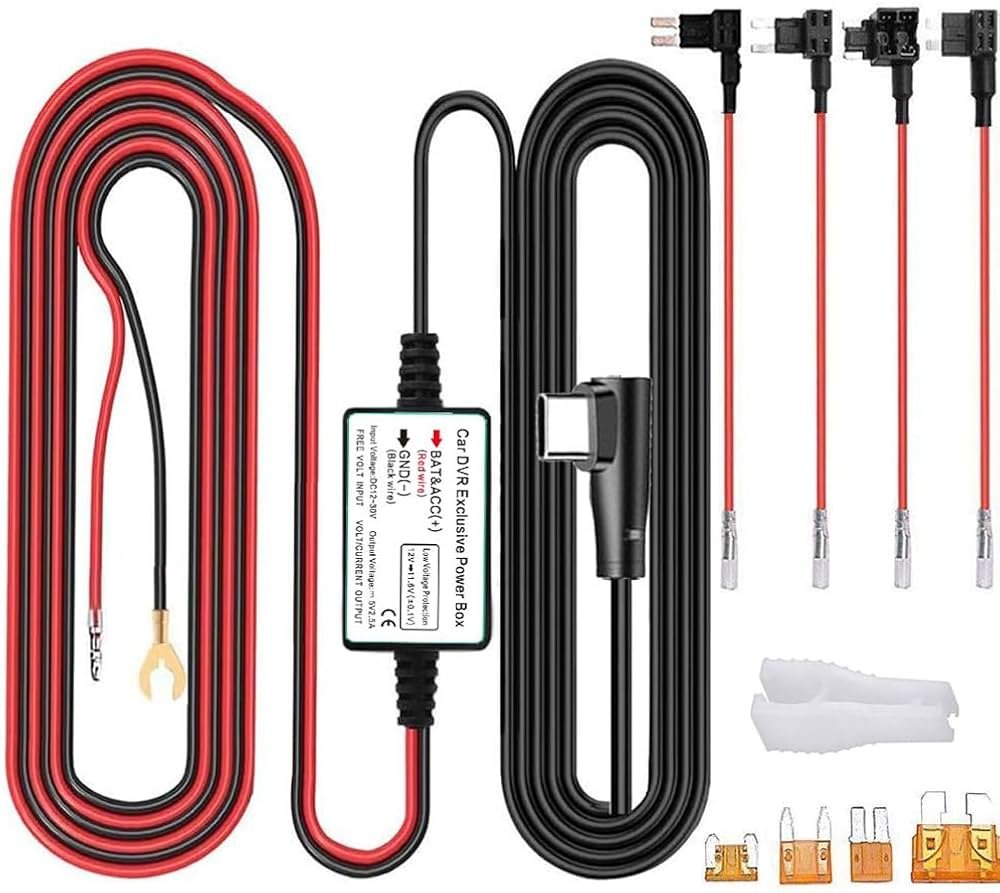

- Hardwire kit (often sold separately)
- Add-a-fuse (fuse tap) with correct fuse size
- Fuse puller or needle-nose pliers
- Plastic trim removal tool
- Multimeter (to find live fuses)
- Wire crimper/stripper
- Zip ties or adhesive clips
- Electrical tape
Safety tip: Always check that your car’s battery and electronics are in good condition before you begin.
Credit: www.amazon.com
Understanding Your Car’s Fuse Box
Every car has at least one fuse box, usually under the dashboard, in the glove compartment, or under the hood. The fuse box contains fuses for different parts of the car’s electrical system. You need to connect your dash cam to a fuse that supplies power when you want the camera to run (for most, both an “always-on” and an “ignition-on” fuse).
Example: A fuse for the radio might only have power when the car is on, while the dome light fuse might be always live.
Pro tip: Use your car’s manual or the fuse box cover to find out which fuses do what.
Step-by-step Guide To Hardwire A Dash Cam
Let’s break down the installation into clear steps. Read through them before starting—rushing leads to errors.
1. Plan Your Dash Cam Placement
Choose a spot behind the rearview mirror for the best view and minimal distraction. Mark the spot and do a quick test to make sure the lens will not be blocked by window tint or sensors.
2. Route The Power Cable
Tuck the cable along the edge of the windshield using your fingers or a trim tool. Continue down the A-pillar (the post between the windshield and door). Avoid placing the cable where it might interfere with airbags.
Hidden insight: Some cars have airbags in the A-pillar—always route the cable behind or below, never in front of the airbag deployment path.
3. Locate The Fuse Box
Most fuse boxes are inside the cabin, often on the driver’s side under the dashboard. Remove the cover carefully. Use your car manual if you’re unsure.
4. Identify The Right Fuse Slots
Use a multimeter or a test light to check which fuses have power when the ignition is on, and which are always live. You need:
- One “ACC” (ignition-switched) fuse for dash cam power when driving.
- One “BAT” (constant) fuse for parking mode (if your dash cam supports it).
Some hardwire kits use only one fuse (ignition-switched); others need both. Follow your dash cam’s instructions.
5. Connect The Add-a-fuse
Remove the target fuse using a fuse puller. Insert it into the add-a-fuse slot, then plug the add-a-fuse into the original fuse position. This lets you draw power safely.
Non-obvious tip: Always match the original fuse’s amperage to avoid blowing fuses or damaging circuits.
6. Attach The Ground Wire
Find a solid metal bolt or screw connected to your car’s chassis (often behind a panel near the fuse box). Loosen the bolt, attach the ground wire’s ring terminal, and tighten again.
7. Connect To The Dash Cam
Plug the hardwire kit’s output cable into your dash cam’s power port. Secure the wires with zip ties, keeping them tidy and away from moving parts or pedals.
8. Test The System
Start your car. Check that the dash cam powers on and records as expected. If you have parking mode, turn off the ignition—the camera should switch to standby or parking recording.
If it doesn’t work, double-check the fuse slots, connections, and your kit’s instructions.
9. Tidy Up And Secure Everything
Replace all trim panels and the fuse box cover. Use zip ties or adhesive clips to secure any loose wire. Make sure nothing interferes with pedals, airbags, or seat adjustments.
Hidden insight: Leaving loose wires can cause rattling noises or even accidental disconnection after weeks of driving.
Comparing Hardwire Kit Features
Not all hardwire kits are the same. Some give only basic power, while others add features like low voltage protection or dual-fuse support.
Here’s a quick comparison of common features:
| Feature | Basic Kit | Advanced Kit |
|---|---|---|
| Low Voltage Protection | No | Yes |
| Parking Mode Support | Sometimes | Always |
| Dual Fuse Connection | No | Yes |
| USB-C/Type-C Power | No | Sometimes |
If your car battery is older or you park for long periods, low voltage cut-off is essential. It prevents draining the battery to the point your car won’t start.
Common Mistakes To Avoid
It’s easy to miss small details that cause big problems later.
- Using the wrong fuse slot: Drawing power from an airbag or critical safety system can cause malfunctions.
- Not grounding properly: A poor ground connection leads to unreliable camera operation.
- Ignoring wire routing: Placing wires near moving parts or airbags is dangerous.
- Skipping the voltage check: Not testing your connections with a multimeter can lead to confusion if the camera doesn’t work.
- Forgetting to check parking mode: Some dash cams need both ACC and BAT power to enable parking features.
How Hardwired Dash Cams Compare To Plug-in Setups
Many people wonder if hardwiring is worth the effort. Here’s a quick comparison:
| Feature | Hardwired | Plug-In |
|---|---|---|
| Parking Surveillance | Yes | No/Not reliable |
| Wire Visibility | Hidden | Exposed |
| Battery Drain Protection | Yes (with kit) | No |
| Installation Difficulty | Moderate/High | Low |
| Frees 12V Socket | Yes | No |
Safety Considerations
Never rush when dealing with your car’s electrical system. If you feel unsure, get help from a professional installer. Electrical faults can cause fires or damage to critical systems.
Important: Disconnect your car battery if you need to strip wires or work with bare terminals. This avoids accidental short circuits.
Practical Tips For A Reliable Installation
- Label your wires: If you use multiple fuse taps, mark each one so you remember their function later.
- Document your setup: Take photos of your fuse box and wiring before and after installation.
- Test every feature: Parking mode, motion detection, and emergency recording should all work after installation.
- Check local laws: Some countries have rules about dash cam placement and use.
- Maintain your dash cam: Update firmware and check SD card health regularly.
Real-world Example
Let’s say you drive a 2015 Toyota Corolla and want to install a dash cam with parking mode. You buy a hardwire kit, an add-a-fuse, and follow the steps above:
- You find the fuse box under the steering wheel and use the radio fuse for the ignition-switched line.
- For parking mode, you use the dome light fuse, which is always live.
- After connecting, your dash cam records while driving and automatically enters parking mode when you turn off the car.
This setup took about 1 hour, with no special skills beyond basic hand tools and patience.
Credit: redtigercam.com
When To Get Professional Help
If your car is still under warranty or you drive a high-end model with complex electronics, consider professional installation. This avoids voiding your warranty or damaging sensitive systems. Many electronics shops and car audio specialists offer this service.
You can also find installation guides and support forums for your car model. For more details, check out this Autoblog dash cam installation guide.
Frequently Asked Questions
Can Hardwiring A Dash Cam Drain My Car Battery?
If installed with a quality hardwire kit that has low voltage protection, your battery will not drain below a safe level. Cheap kits without this feature can risk battery drain, especially if you leave your car parked for days.
Do I Need Special Tools For Hardwiring A Dash Cam?
Basic hand tools like a fuse puller, wire stripper, and a plastic trim tool are usually enough. A multimeter helps for checking voltage, but is not always required.
Will Hardwiring My Dash Cam Void My Warranty?
In most cases, using add-a-fuse adapters and not cutting factory wires will not void your warranty. However, always check your car’s warranty terms or ask your dealer first.
Can I Still Use My Car’s 12v Socket After Hardwiring?
Yes. Hardwiring frees up your 12V socket for phone chargers or other devices, since the dash cam no longer uses it.
Is It Safe To Install A Dash Cam Myself?
Most people can install a dash cam safely by following instructions carefully. If you are unsure or worried about your car’s electronics, professional help is the best choice.
Setting up a hardwired dash cam might seem challenging, but taking it step by step makes it easier and safer. With a careful approach and the right tools, you’ll enjoy cleaner wiring, reliable recording, and better protection for your car every day.
