A car code reader is a starting point for diagnosis, not a device that tells you which part to replace. The most useful workflow is to read and save codes, review freeze-frame and live data when available, understand which module set the code, then test the system before replacing anything.
What a Code Reader Can and Cannot Do
A basic generic OBD-II reader usually accesses powertrain emissions-related diagnostic trouble codes on compliant vehicles. More capable scan tools may also access ABS, SRS, body, transmission, steering, TPMS, manufacturer-specific modules, live data, bidirectional controls, service resets, and coding functions.
Do not assume every “advanced scanner” automatically reads every system on every vehicle. Coverage is tool-, brand-, model-, year-, and subscription-dependent.
OBD-II Compatibility
In the United States, standardized OBD-II requirements broadly apply to 1996-and-newer light-duty vehicles, but connector presence does not guarantee that every module or manufacturer-specific code is accessible with a generic reader. Other markets adopted equivalent requirements on different timelines.
Step 1: Find the Diagnostic Connector

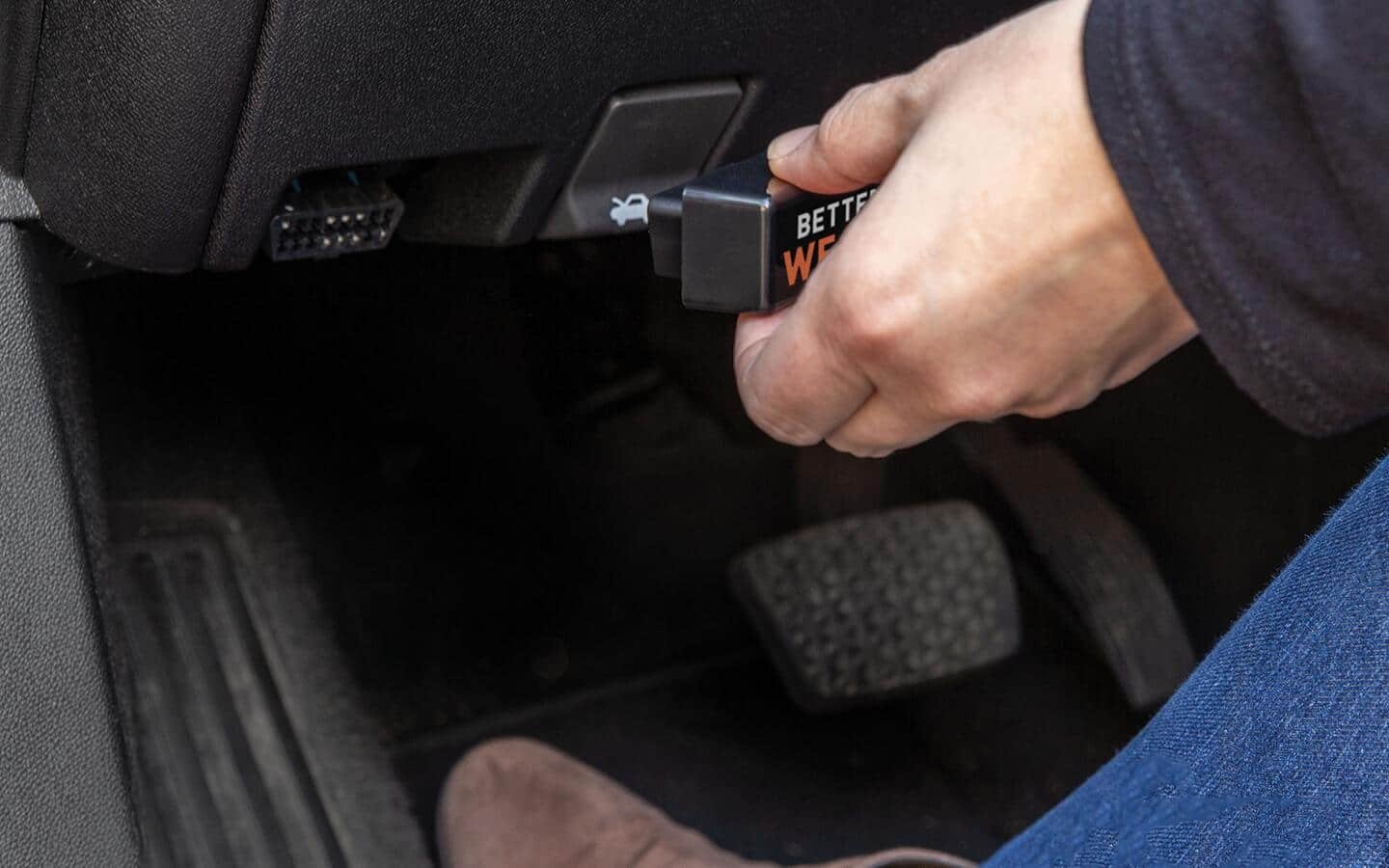

The standardized 16-pin data link connector is usually located within reach of the driver area, often under the dash. Exact placement varies by model, so use the owner’s manual if needed.
Step 2: Follow the Tool’s Connection Procedure
Some readers can be connected with the ignition off; others specify ignition on/engine off before communication. Follow the scanner manufacturer’s instructions. Do not assume “engine off before plugging in” is a universal electrical-safety requirement.

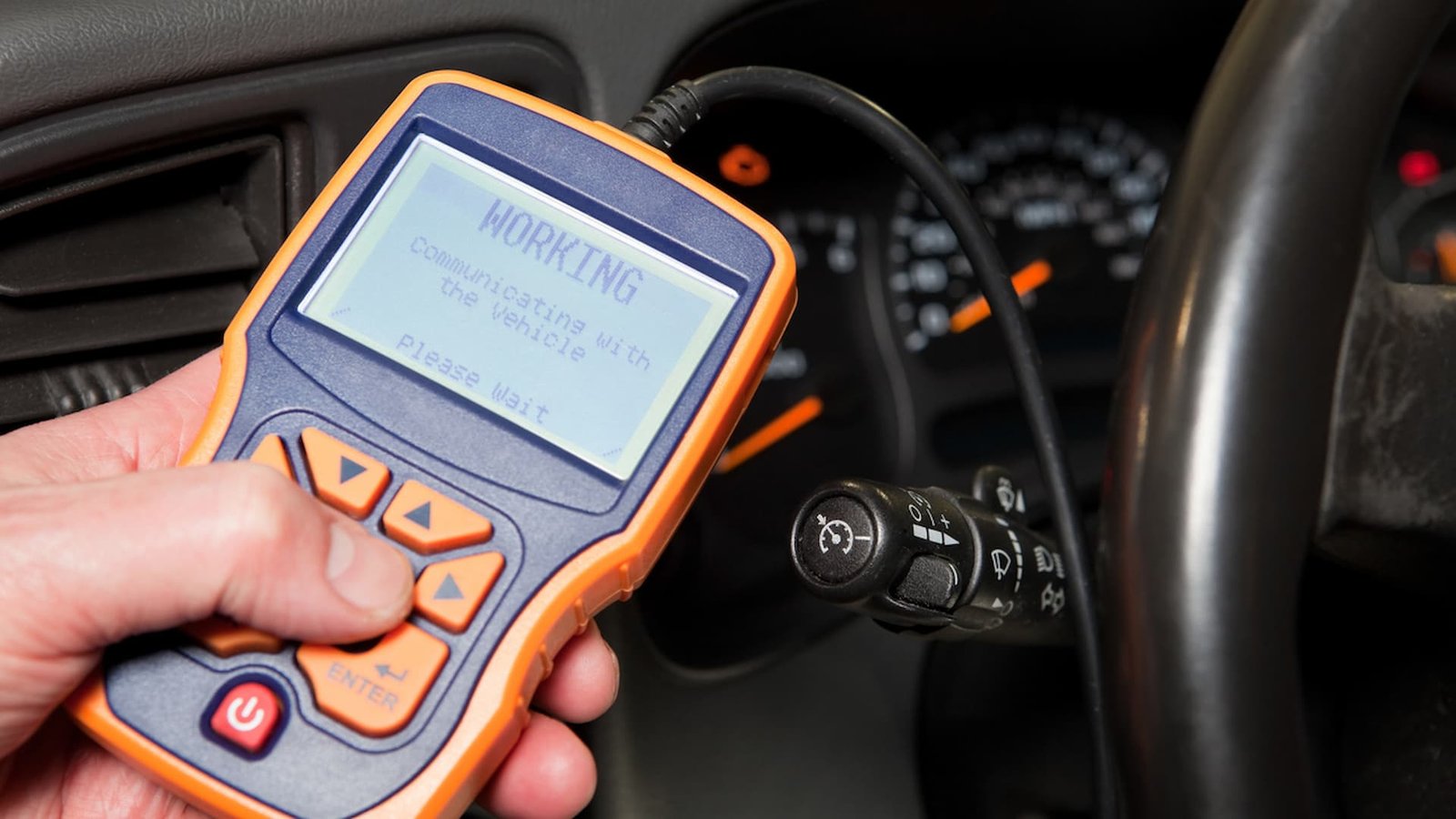

Step 3: Read All Relevant Codes
Record stored, pending, and permanent codes where available. Also note which module set each code. A generic P-code, manufacturer-specific code, ABS C-code, body B-code, or network U-code can point to very different systems.
Step 4: Save Freeze-Frame Data Before Clearing
Freeze-frame data can show engine load, RPM, coolant temperature, vehicle speed, fuel trim, and other conditions when a fault was detected. Clearing codes can erase this useful evidence.
Step 5: Understand What the Code Means
A DTC usually describes the fault condition the control module detected, not the exact failed component.
For example, a cylinder misfire code does not prove the ignition coil is bad. An oxygen-sensor-related code can be caused by the sensor, wiring, exhaust leaks, fuel-control problems, or another engine fault.
Step 6: Use Live Data Where Helpful
Live data can help confirm or challenge a diagnosis. Fuel trims, coolant temperature, throttle position, MAF/MAP readings, oxygen-sensor data, misfire counters, battery voltage, and commanded actuator states can be useful when interpreted in context.
Step 7: Do Not Clear Codes Too Early
Clear codes only after saving the information and when it makes sense for the diagnostic plan. Erasing codes can reset readiness monitors and may delay emissions inspection readiness.
Permanent Codes
Some permanent emissions codes cannot simply be erased with a scan tool. They remain until the vehicle completes the relevant monitor and confirms the fault is no longer present.
Readiness Monitors
After codes are cleared or battery power is removed, emissions readiness monitors may show “not ready.” They complete only when the vehicle sees the required operating conditions. There is no universal number of miles or days that guarantees all monitors will set.
Basic Reader vs. Full Scan Tool
| Capability | Basic Generic Reader | More Advanced Tool |
|---|---|---|
| Generic engine/emissions DTCs | Usually | Usually |
| Pending/permanent codes | Often | Often |
| Freeze frame | Varies | Common |
| Live data | Varies | Common |
| ABS/SRS/body modules | Usually no | Coverage-dependent |
| Bidirectional controls | No | Tool/vehicle-dependent |
| Service resets/coding | No | Tool/vehicle-dependent |
Bluetooth Dongles and Apps
Bluetooth adapters can be useful, but app capability depends on both the adapter and software. Cheap adapters may have limited protocol support or unreliable communication. Avoid leaving unknown low-quality adapters connected permanently if the manufacturer warns about battery draw or network behavior.
Common Mistakes
- Assuming the code names the failed part.
- Clearing codes before saving freeze-frame data.
- Believing a basic reader can access ABS, SRS, and every body module.
- Replacing parts based only on internet code definitions.
- Using a generic code description without checking manufacturer-specific information.
- Assuming a light that goes off after clearing means the repair is complete.
- Forgetting that clearing codes can reset readiness monitors.
How to Research a Code Correctly
Start with the exact code, vehicle year, make, model, engine, and module. Then consult manufacturer service information, reliable technical databases, and wiring diagrams. Generic web lists can be useful for orientation but should not replace vehicle-specific diagnostics.
When a Code Reader Is Not Enough
You may need a more capable scan tool when the problem involves ABS, airbags, steering, transmission adaptations, advanced driver-assistance systems, immobilizer/security, network communication, or bidirectional testing.
Frequently Asked Questions
Can a code reader turn off the check-engine light?
Most can erase many emissions-related codes, but that does not repair the fault. If the problem remains, the code usually returns.
Will a code reader work on every 1996-and-newer vehicle?
Generic powertrain OBD-II support is broadly standardized in the U.S., but module access and manufacturer-specific coverage still vary.
Should I clear codes before taking the car to a mechanic?
Usually no. Leaving the codes and freeze-frame data intact can help diagnosis.
Can a code reader diagnose ABS or airbag lights?
Only if the tool supports those systems on that specific vehicle. Many basic readers do not.
Can a code reader damage a car?
Basic reading is generally low risk when using a compatible tool correctly. Higher-level functions such as coding, programming, actuator control, and service procedures require more care.
Bottom Line
Connect correctly → read all relevant codes → save freeze frame → identify the module and code definition → use live data and service information → test the suspected system → repair → clear only when appropriate → verify the monitor does not fail again.
How to Read Different Code Types
Diagnostic trouble codes begin with a letter that identifies a system family. P-codes relate to powertrain, B-codes to body systems, C-codes to chassis systems, and U-codes to network communication. A basic reader may only show generic powertrain codes even though other modules have their own faults.
Stored, Pending, and Permanent Codes
A stored code has met the module’s criteria strongly enough to be recorded. A pending code has been detected but may not yet have matured into a stored fault. A permanent emissions code remains until the onboard monitor confirms the fault is no longer present.
Looking at all available code types can reveal intermittent faults before the warning light becomes constant.
How to Use Freeze-Frame Data
Freeze-frame information captures operating conditions when a fault was detected. Useful fields can include RPM, vehicle speed, coolant temperature, engine load, and fuel trims. Compare those conditions with when the symptom actually occurs.
Useful Live-Data Checks
Live data can help confirm whether a sensor reading is plausible. Coolant temperature should generally start near ambient after a long cold soak and rise as the engine warms. Battery voltage can help identify charging issues. Fuel trims show how strongly the engine computer is correcting mixture. Throttle and pedal readings should change smoothly.
Exact values still need vehicle-specific interpretation. A number outside a generic internet range does not automatically prove a sensor is bad.
When Bidirectional Controls Help
More capable scan tools can command selected components such as fans, purge valves, lights, solenoids, or pumps. This can help separate a failed component from a wiring or control problem. Use these functions only when you understand what the command will do.
What to Save Before Clearing Codes
- Stored, pending, and permanent codes.
- Freeze-frame data.
- Relevant live-data readings.
- The module that reported each code.
- The symptoms and conditions when the fault happened.
Saving this information gives you a before-and-after reference and protects useful diagnostic evidence.
